Copper Patch Cords · CAT.7

360°Rotatable Angled Slim Cat.7 U/FTP 32AWG PVC Patch Cable

Acelink 360° rotatable angled slim patch cable. Up, down, left, right — any angle can be set to match the equipment in different situations, easily coping with narrow spaces, preventing the cable from bending and extending its lifespan.

360°Rotatable Angled Slim Cat.7 U/FTP 32AWG PVC Patch Cable

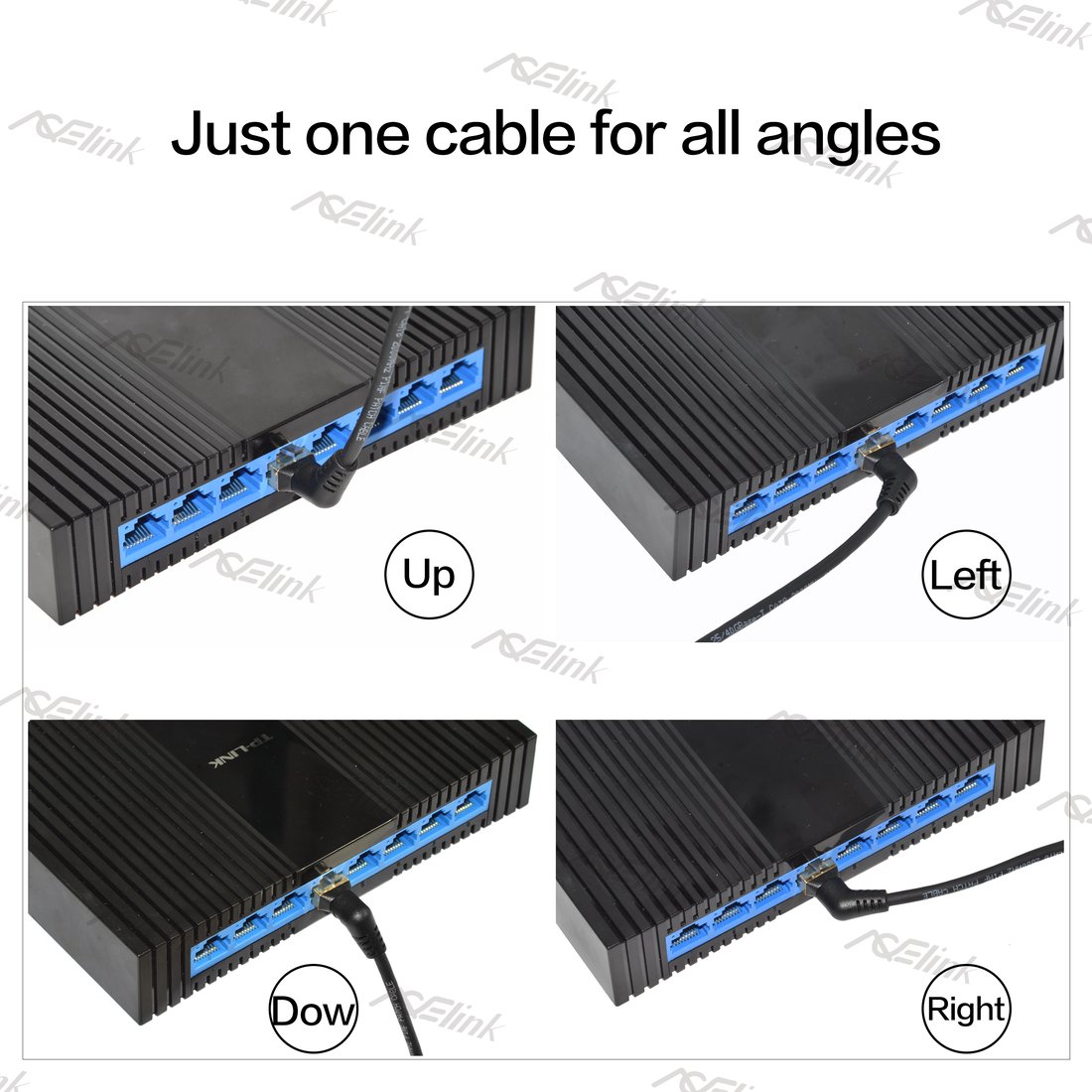

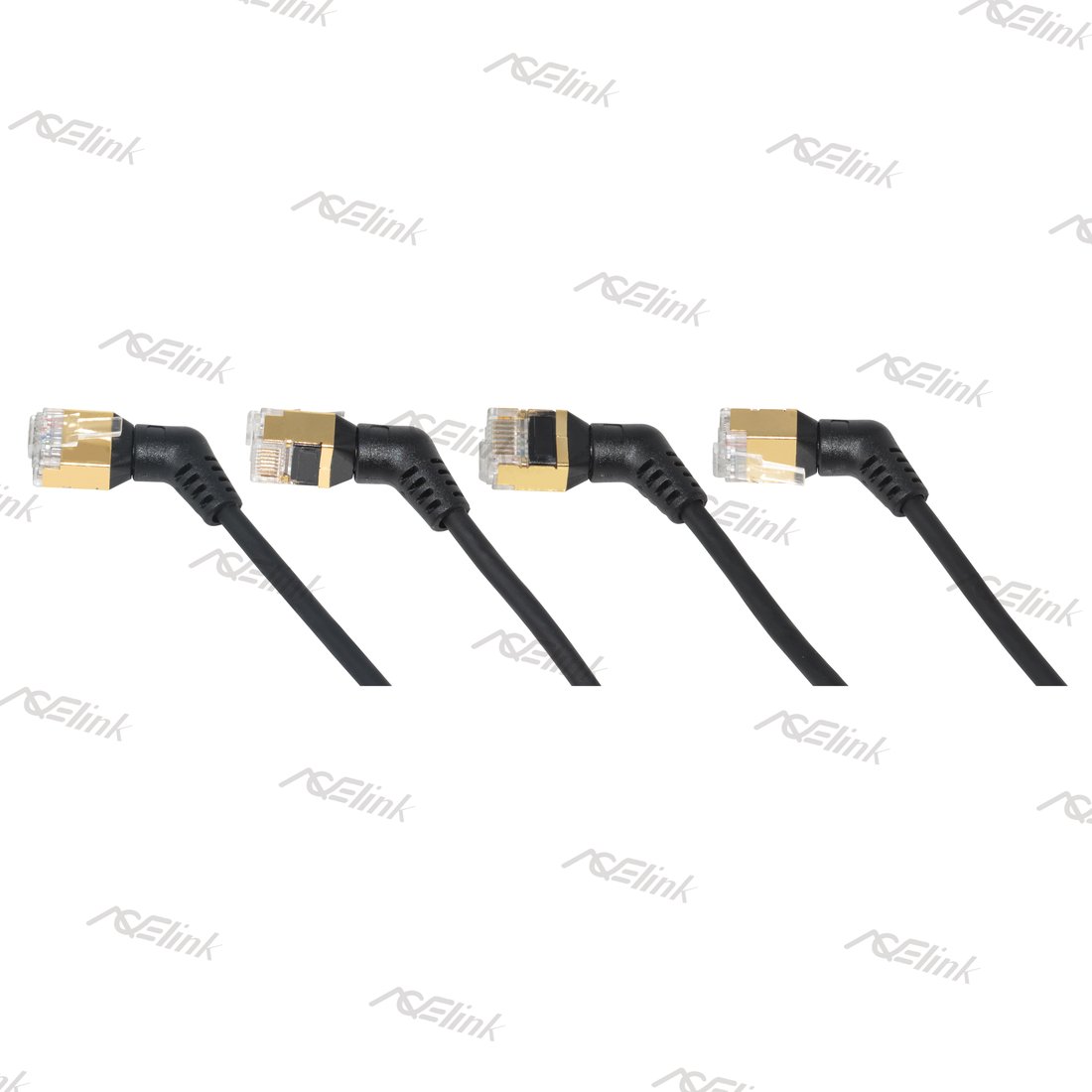

Main view Detail 1 Detail 2

Specifications

Product No. 160915172

U/FTP · 32AWG · 360° Rotatable

ConstructionU/FTP
CategoryCAT.7
Conductor32AWG bare copper
Jacket MaterialCM PVC
Length Range0.3m –10m
ComplianceRoHS, REACH, CE, CPR, ISO 9001, ISO 14001, RCM, UKCA, UL 444
Request Quote ← Back to CAT.7 Products

Applications

🔌Data Centers
🔌Structured Cabling
🔌AI Computing
🔌High-Density Patching
🔌Hotels & Offices

Key Features

1.RJ45 connector can be rotated a full 360°
2.Available in Slim CAT.8 & CAT.7 32AWG U/FTP and Slim CAT.6A & CAT.6 32AWG U/UTP
3.10 Gigabit data transmission at 500 MHz
4.Length: 0.3 m ~ 10 m; 1 ft ~ 30 ft

Customization Options

🔧
Any Length

Any length, connector and boot option to your requirement.

🔧
Jacket & Printing

CM PVC jacket with colour printing available.

🔧
Connector & Boot

Made to your drawing or specification.
