Specifications
Product No. 160929174
U/UTP · 28AWG · USB-C Powered
| Construction | U/UTP |
| Category | CAT.6A |
| Conductor | 28AWG bare copper |
| Cable OD | 3.8±0.2mm |
| Jacket Material | LSZH | PVC |
| Connector | Built-in USB-C Port for Power |
| Length Range | up to 15m |
| Compliance | RoHS, REACH, CE, CPR, ISO 9001, ISO 14001, RCM, UKCA, UL 444 |
Applications
🔌Data Centers
🔌Structured Cabling
🔌AI Computing
🔌High-Density Patching
🔌Hotels & Offices
Key Features

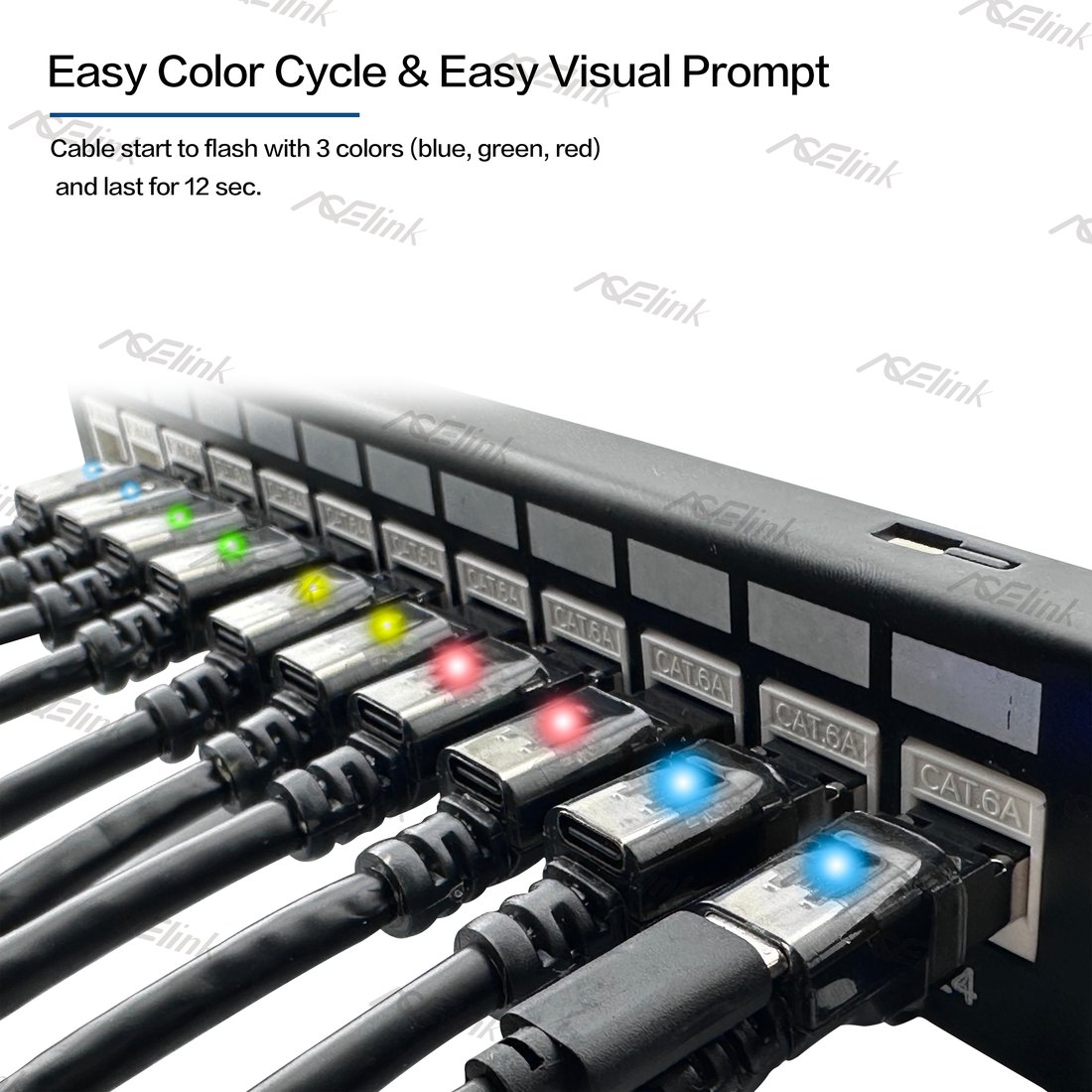

1.Smart Tracing — the LED flashes for 12 sec (6 s slow + 6 s quick) for instant cable tracing
2.Environment Friendly — no built-in battery, safe for logistics and allowed to ship by sea or air
3.Time Saving — dramatically reduces downtime with fast cable identification for maintenance
4.Cost-Effective — significantly lower cost than smart tracing cables with a built-in battery
Customization Options
🔧
Any Length
Any length, connector and boot option to your requirement.
🔧
Jacket & Printing
LSZH or PVC jacket with colour printing available.
🔧
Connector & Boot
Made to your drawing or specification.
