Copper Patch Cords · CAT.6A

Easy-Trace CAT.6A 24AWG U/UTP Patch Cable with DIY Colored Clip Clear Boot

Acelink Easy-Trace patch cable with replaceable DIY colored clips on the strain relief boot. Cable ends can be identified without unplugging, with up to 10 selectable colors — simplifying data center operation and cutting the number of colored patch cords you need to stock.

Easy-Trace CAT.6A 24AWG U/UTP Patch Cable with DIY Colored Clip Clear Boot
Main view Detail 1 Detail 2 Detail 3

Specifications

Product No. 160927172

U/UTP · 24AWG · DIY Colored Clip

ConstructionU/UTP
CategoryCAT.6A
Conductor24AWG bare copper
Cable OD6.0mm
Jacket MaterialLSZH | PVC
ConnectorDIY Colored Clip Clear Boot
Test LimitANSI/TIA-568.2-D; ISO/IEC 11801 Class Ea.
Length Range0.3m–30m
ComplianceRoHS, REACH, CE, CPR, ISO 9001, ISO 14001, RCM, UKCA, UL 444
Request Quote ← Back to CAT.6A Products

Applications

🔌Data Centers
🔌Structured Cabling
🔌AI Computing
🔌High-Density Patching
🔌Hotels & Offices

Key Features

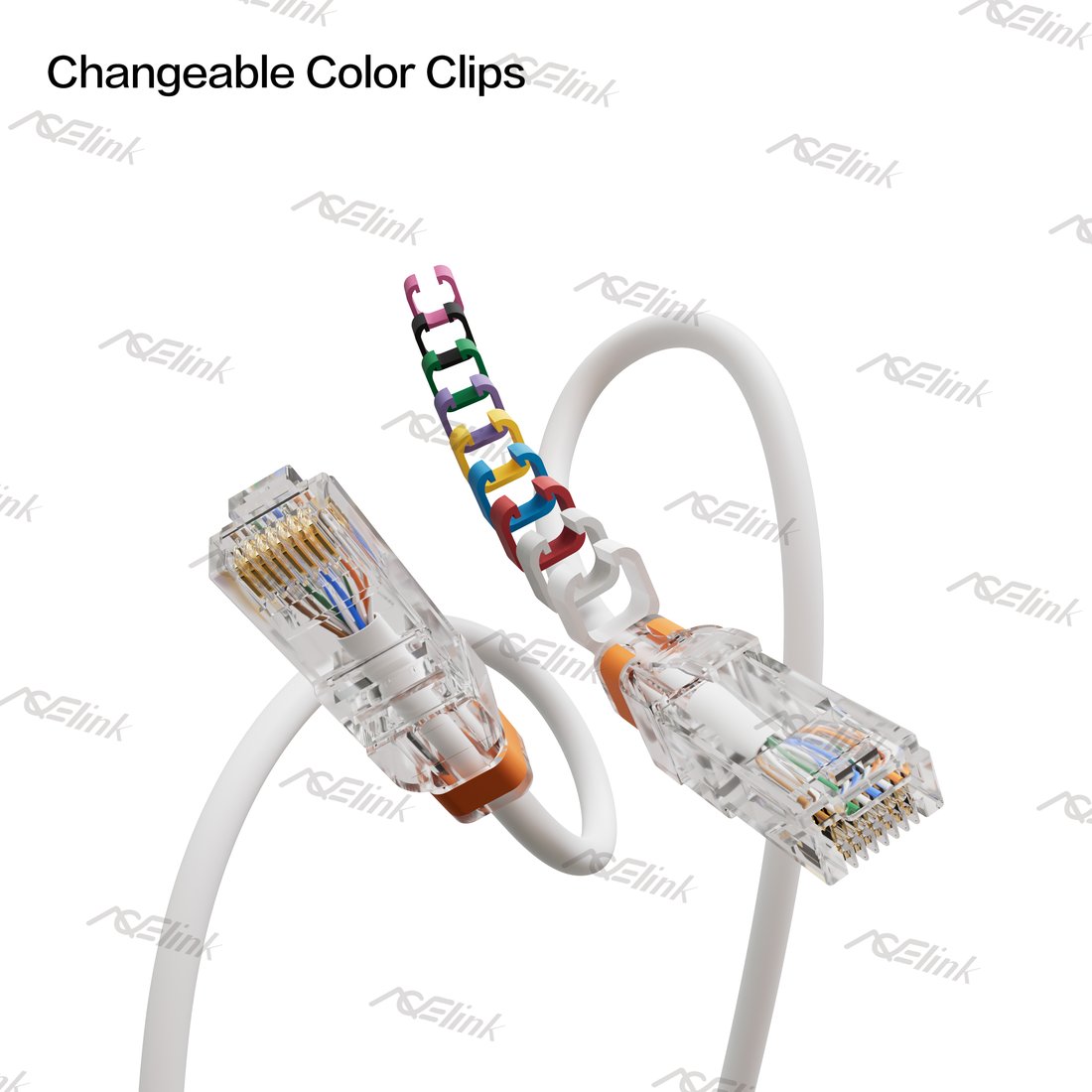

1.Changeable colorful clips on both ends of the strain relief boot

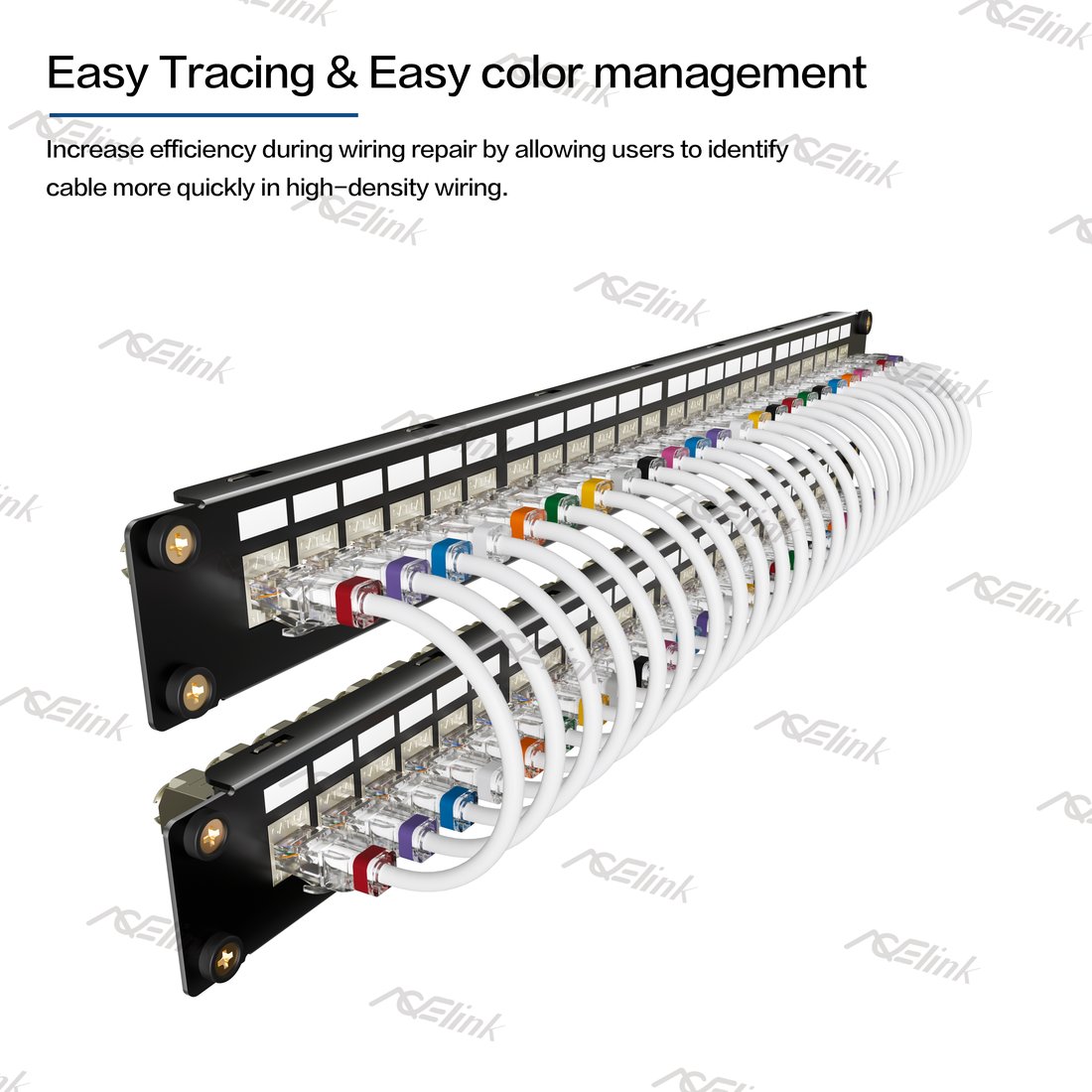

2.Cable ends can be identified without unplugging, greatly improving troubleshooting and maintenance efficiency
3.DIY color clips let users customize the boot colors to their own preference
4.Up to 10 different colors can label various cabling applications

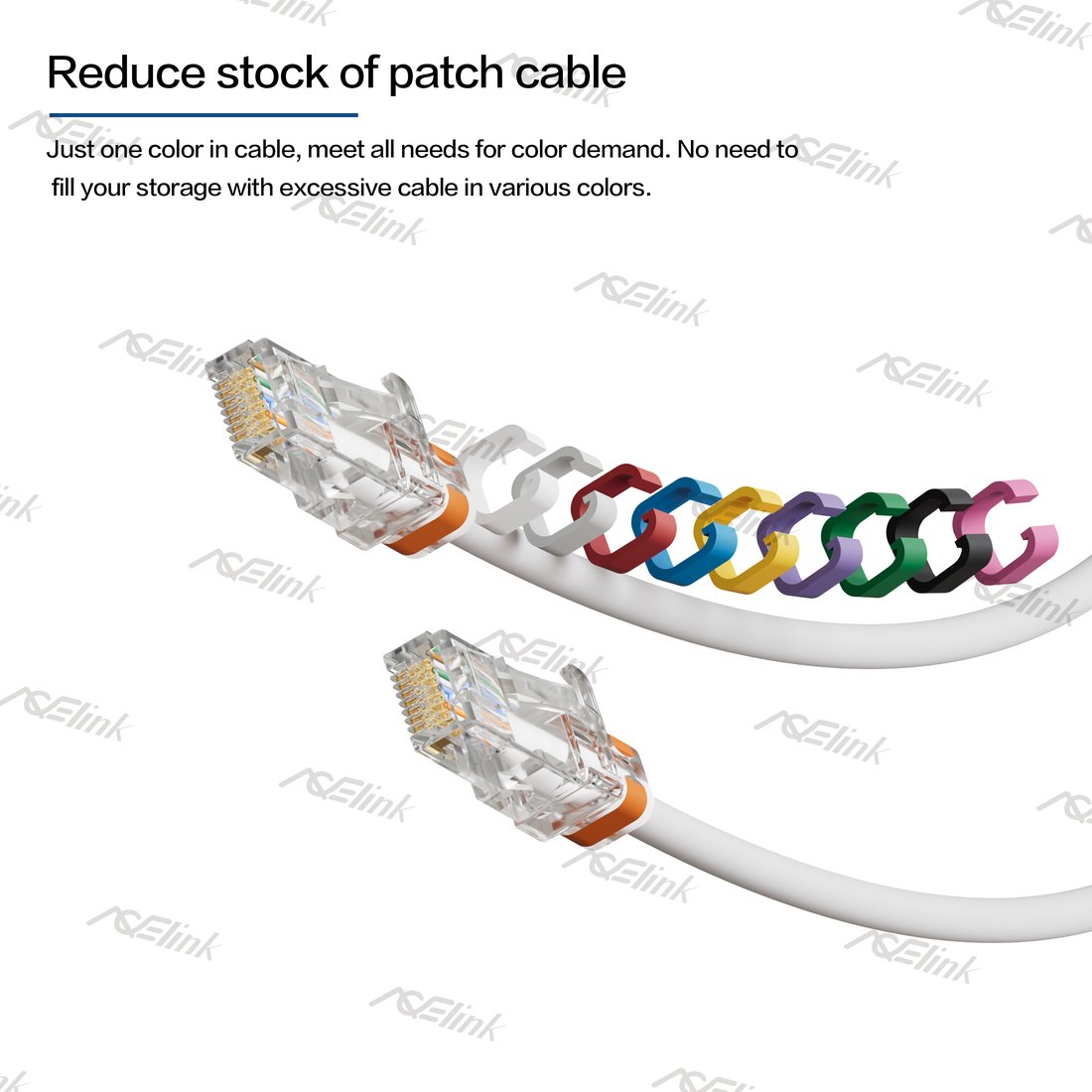

5.No need to fill your warehouse with excessive patch cord colors

Customization Options

🔧
Any Length

Any length, connector and boot option to your requirement.

🔧
Jacket & Printing

LSZH or PVC jacket with colour printing available.

🔧
Connector & Boot

Made to your drawing or specification.
